DevOps（2）--Gitlab
Gitlab
GitLab 是一个用于仓库管理系统的开源项目，使用Git（开源的分布式版本控制系统）作为代码管理工具，并在此基础上搭建起来的Web服务。
在DevOps中，要实现自动化，第一步首先要做的就是能有效的管理代码，检出代码。
Gitlab非常适合做为公司的私有代码仓库，GitLab 是可以部署到自己的服务器上，GITLAB 免费且开源(基于 MIT 协议)，与 Github 类似， 可以注册用户，任意提交你的代码，添加 SSHKey 等等。
1. 安装
官方提供了云原生的安装方式：https://docs.gitlab.com/，提供了Helm的方式和Operator的方式。
Operator不适合生产环境部署，Helm方式默认配置也不适合生产环境部署，想要适合生产环境，必须做大量的配置。
这里我们还是自定义安装。
1.1 环境准备
k8s环境（前面课程已经安装）
redis
Postgresql
nfs
1.2 nfs
nfs在前面我们已经安装完成，使用nfs达到持久化的目的。
新创建一个目录：
[root@master ~]# mkdir /data/gitlab
[root@master ~]# mkdir /data/gitlab/config
[root@master ~]# mkdir /data/gitlab/logs
[root@master ~]# mkdir /data/gitlab/data
[root@master ~]# mkdir /data/gitlab/redis
[root@master ~]# mkdir /data/gitlab/postgresql
[root@master ~]# vim /etc/exports
/data/mysql *(insecure,rw,sync,no_root_squash)
/data/wordpress *(insecure,rw,sync,no_root_squash)
/data/thanos *(insecure,rw,sync,no_root_squash)
/data/log *(insecure,rw,sync,no_root_squash)
/data/gitlab/config *(insecure,rw,sync,no_root_squash)
/data/gitlab/logs *(insecure,rw,sync,no_root_squash)
/data/gitlab/data *(insecure,rw,sync,no_root_squash)
/data/gitlab/redis *(insecure,rw,sync,no_root_squash)
/data/gitlab/postgresql *(insecure,rw,sync,no_root_squash)
[root@master ~]# systemctl restart nfs
1.3 redis
gitlab-redis.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
namespace: gitlab
labels:
name: redis
spec:
selector:
matchLabels:
name: redis
template:
metadata:
name: redis
labels:
name: redis
spec:
containers:
- name: redis
image: redis:6.2
imagePullPolicy: IfNotPresent
ports:
- name: redis
containerPort: 6379
volumeMounts:
- mountPath: /var/lib/redis
name: gitlab-redis-data
livenessProbe:
exec:
command:
- redis-cli
- ping
initialDelaySeconds: 30
timeoutSeconds: 5
readinessProbe:
exec:
command:
- redis-cli
- ping
initialDelaySeconds: 30
timeoutSeconds: 1
volumes:
- name: gitlab-redis-data
nfs:
server: 192.168.200.101
path: /data/gitlab/redis
---
apiVersion: v1
kind: Service
metadata:
name: redis
namespace: gitlab
labels:
name: redis
spec:
ports:
- name: redis
port: 6379
targetPort: redis
selector:
name: redis
1.4 Postgresql
gitlab-postgresql.yaml:
apiVersion: apps/v1
kind: Deployment
metadata:
name: postgresql
namespace: gitlab
labels:
name: postgresql
spec:
selector:
matchLabels:
name: postgresql
template:
metadata:
name: postgresql
labels:
name: postgresql
spec:
containers:
- name: postgresql
image: sameersbn/postgresql:12-20200524
imagePullPolicy: IfNotPresent
env:
- name: DB_USER
value: gitlab
- name: DB_PASS
value: gitlab
- name: DB_NAME
value: gitlab_production
- name: DB_EXTENSION
value: pg_trgm,btree_gist
ports:
- name: postgres
containerPort: 5432
volumeMounts:
- mountPath: /var/lib/postgresql
name: gitlab-postgresql-data
readinessProbe:
exec:
command:
- pg_isready
- -h
- localhost
- -U
- postgres
initialDelaySeconds: 30
timeoutSeconds: 1
volumes:
- name: gitlab-postgresql-data
nfs:
server: 192.168.200.101
path: /data/gitlab/postgresql
---
apiVersion: v1
kind: Service
metadata:
name: postgresql
namespace: gitlab
labels:
name: postgresql
spec:
ports:
- name: postgres
port: 5432
targetPort: postgres
selector:
name: postgresql
1.5 gitlab
gitlab.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: gitlab
namespace: gitlab
annotations:
nginx.ingress.kubernetes.io/proxy-body-size: "50m"
labels:
name: gitlab
spec:
selector:
matchLabels:
name: gitlab
template:
metadata:
name: gitlab
labels:
name: gitlab
spec:
initContainers:
- name: fix-permissions
image: busybox
command: ["sh", "-c", "chown -R 1000:1000 /home/git/data"]
securityContext:
privileged: true
volumeMounts:
- name: gitlab-data
mountPath: /home/git/data
containers:
- name: gitlab
image: sameersbn/gitlab:15.4.2
imagePullPolicy: IfNotPresent
env:
- name: TZ
value: Asia/Shanghai
- name: GITLAB_TIMEZONE
value: Beijing
- name: GITLAB_SECRETS_DB_KEY_BASE
value: "long-and-random-alpha-numeric-string"
- name: GITLAB_SECRETS_SECRET_KEY_BASE
value: "long-and-random-alpha-numeric-string"
- name: GITLAB_SECRETS_OTP_KEY_BASE
value: "long-and-random-alpha-numeric-string"
- name: GITLAB_ROOT_PASSWORD
value: admin123456789
- name: GITLAB_ROOT_EMAIL
value: admin@test.com
- name: GITLAB_HOST
value: gitlab.test.com
- name: GITLAB_PORT
value: "80"
- name: GITLAB_SSH_PORT
value: "22"
- name: GITLAB_NOTIFY_ON_BROKEN_BUILDS
value: "true"
- name: GITLAB_NOTIFY_PUSHER
value: "false"
- name: GITLAB_BACKUP_SCHEDULE
value: daily
- name: GITLAB_BACKUP_TIME
value: 01:00
- name: DB_TYPE
value: postgres
- name: DB_HOST
value: postgresql
- name: DB_PORT
value: "5432"
- name: DB_USER
value: gitlab
- name: DB_PASS
value: gitlab
- name: DB_NAME
value: gitlab_production
- name: REDIS_HOST
value: redis
- name: REDIS_PORT
value: "6379"
ports:
- name: http
containerPort: 80
- name: ssh
containerPort: 22
volumeMounts:
- mountPath: /home/git/data
name: gitlab-data
readinessProbe:
httpGet:
path: /
port: 80
initialDelaySeconds: 60
timeoutSeconds: 1
volumes:
- name: gitlab-data
nfs:
server: 192.168.200.101
path: /data/gitlab/data
---
apiVersion: v1
kind: Service
metadata:
name: gitlab
namespace: gitlab
labels:
name: gitlab
spec:
ports:
- name: http
port: 80
targetPort: http
- name: ssh
port: 22
targetPort: ssh
nodePort: 30022
type: NodePort
selector:
name: gitlab
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: gitlab
namespace: gitlab
labels:
name: gitlab
spec:
ingressClassName: nginx # ingress控制器的名称
rules:
- host: gitlab.test.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: gitlab
port:
number: 80
1.6 部署
[root@master gitlab]# kubectl create ns gitlab
namespace/gitlab created
[root@master gitlab]# kubectl apply -f gitlab-redis.yaml
deployment.apps/redis created
service/redis created
[root@master gitlab]# kubectl apply -f gitlab-postgresql.yaml
deployment.apps/postgresql created
service/postgresql created
[root@master gitlab]# kubectl apply -f gitlab.yaml
deployment.apps/gitlab created
service/gitlab created
ingress.networking.k8s.io/gitlab created
[root@master gitlab]# kubectl get pods -n gitlab
NAME READY STATUS RESTARTS AGE
gitlab-f48856fcb-pf85t 1/1 Running 0 17m
postgresql-78986d6cbf-hfgvh 1/1 Running 0 17m
redis-6d8f96b655-gkfpl 1/1 Running 0 17m
[root@master gitlab]# kubectl get svc -n gitlab
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
gitlab NodePort 10.106.214.118 <none> 80:31823/TCP,22:30022/TCP 9h
postgresql ClusterIP 10.108.250.62 <none> 5432/TCP 8h
redis ClusterIP 10.102.6.162 <none> 6379/TCP 22h
[root@master gitlab]# kubectl get ingress -n gitlab
NAME CLASS HOSTS ADDRESS PORTS AGE
gitlab ingress-nginx gitlab.test.com 80 9h
设置hosts，然后浏览器访问gitlab.test.com
2. 简单使用
注册新用户需要管理员审核：
新建组：
新建工程：

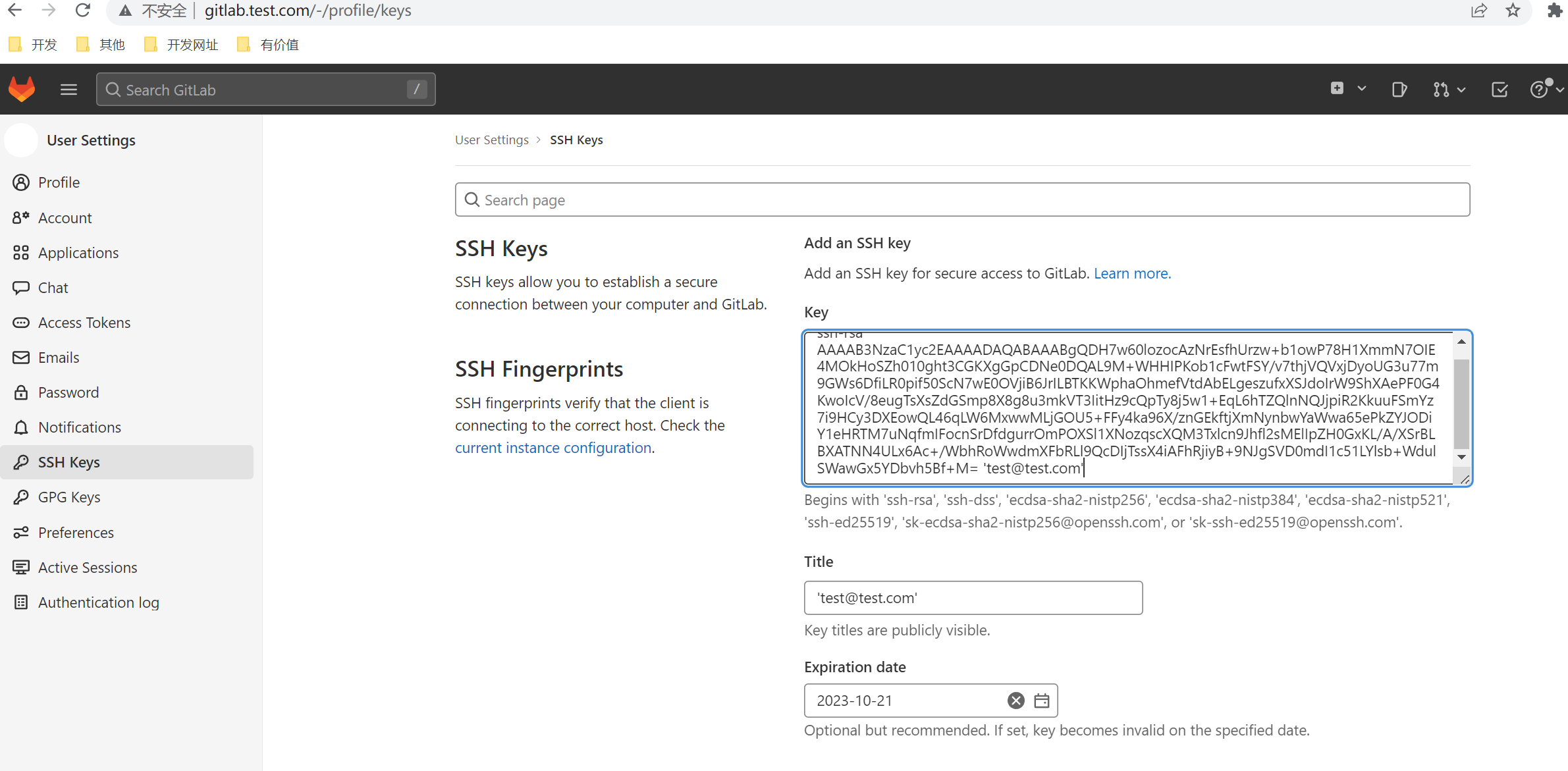

生成ssh公钥：
D:\git\test>git config --global user.name 'test123'
D:\git\test>git config --global user.email 'test@test.com'
D:\git\test>ssh-keygen -t rsa -C 'test@test.com'
获取id_rsa.pub内容：
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABgQDH7w60lozocAzNrEsfhUrzw+b1owP78H1XmmN7OIE4MOkHoSZh010ght3CGKXgGpCDNe0DQAL9M+WHHIPKob1cFwtFSY/v7thjVQVxjDyoUG3u77m9GWs6DfiLR0pif50ScN7wE0OVjiB6JrILBTKKWphaOhmefVtdAbELgeszufxXSJdoIrW9ShXAePF0G4KwoIcV/8eugTsXsZdGSmp8X8g8u3mkVT3IitHz9cQpTy8j5w1+EqL6hTZQlnNQJjpiR2KkuuFSmYz7i9HCy3DXEowQL46qLW6MxwwMLjGOU5+FFy4ka96X/znGEkftjXmNynbwYaWwa65ePkZYJODiY1eHRTM7uNqfmIFocnSrDfdgurrOmPOXSl1XNozqscXQM3Txlcn9Jhfl2sMElIpZH0GxKL/A/XSrBLBXATNN4ULx6Ac+/WbhRoWwdmXFbRLl9QcDIjTssX4iAFhRjiyB+9NJgSVD0mdI1c51LYlsb+WdulSWawGx5YDbvh5Bf+M= 'test@test.com'
克隆代码：
# 22端口对外映射的是30022 所以这要加上端口号
git clone ssh://git@gitlab.test.com:30022/gitlab/test.gitDevOps（2）--Gitlab
