DevOps（5）--SonarQube安装配置

SonarQube安装配置

SonarQube是一款用于代码质量管理的开源工具，它主要用于管理源代码的质量。通过插件形式，可以支持众多计算机语言，比如 java, C#, go，C/C++, PL/SQL, Cobol, JavaScrip, Groovy 等。sonar可以通过PMD,CheckStyle,Findbugs等等代码规则检测工具来检测你的代码，帮助你发现代码的漏洞，Bug等

1. 使用流程

开发人员编写代码
使用sonar进行本地代码检查
提交代码到代码仓库
提交CI/CD流水线
流水线集成sonar进行代码检查
有问题通知开发者，生成扫描报告

2.安装

地址：https://www.sonarsource.com/

SonarQube实例包含三个组件：sonarqube-scanner ，sonarqube server和Database server

sonarqube server上主要有3个应用：

Web服务：为SonarQube用户界面提供服务的。
搜索服务：基于 Elasticsearch 。
计算引擎：负责处理代码分析报告并将其保存在SonarQube数据库中

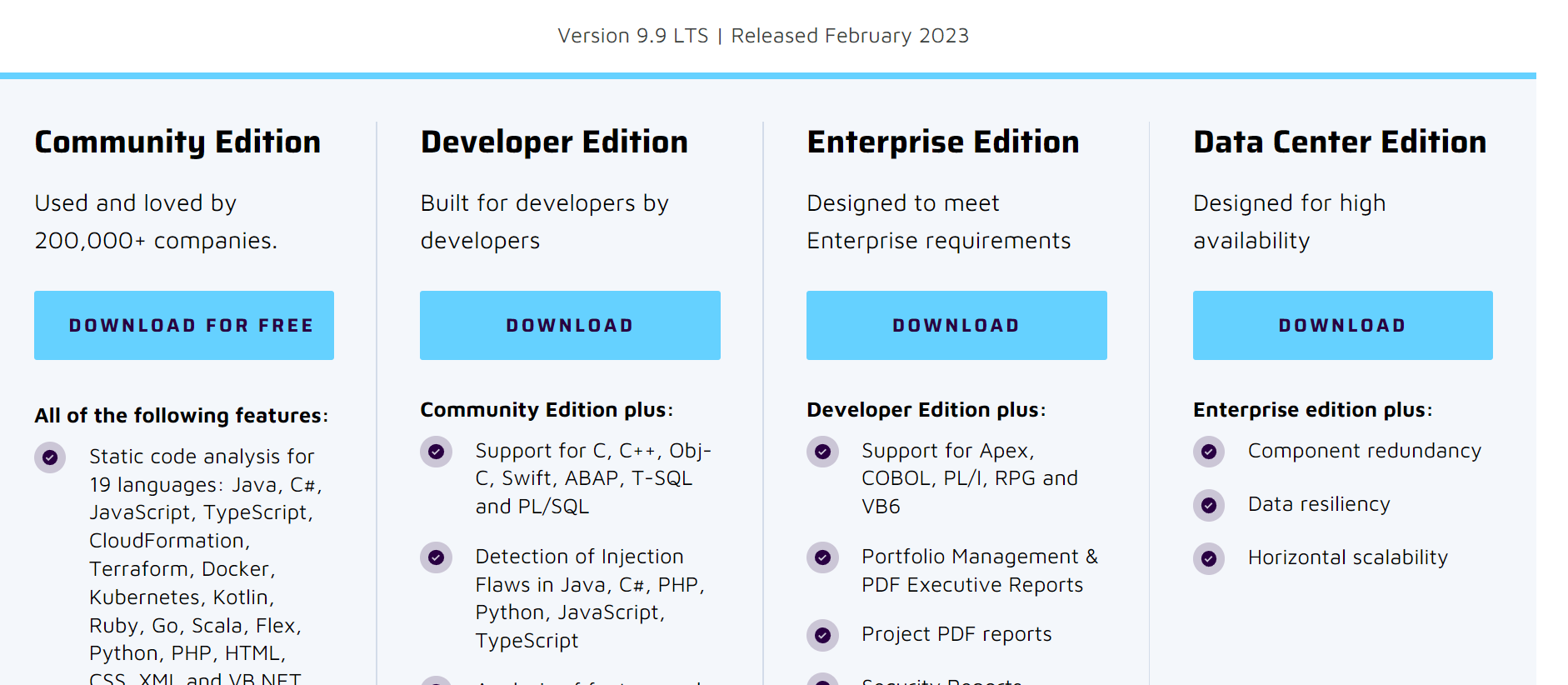

有四个版本：社区版（免费），开发者版，企业版和数据中心版

2.1 依赖的环境

SonarQube安装需要2G以上的内存，jdk11或17，PostgreSQL。

2.2 k8s部署

目前我们已经有了k8s环境，所以部署应用我们使用k8s来部署

2.2.1 storageclass

storageclass.yaml：

apiVersion: storage.k8s.io/v1 ## 创建了一个存储类
kind: StorageClass
metadata:
  name: sonar-storage
  annotations:
    storageclass.kubernetes.io/is-default-class: "true"
  namespace: sonar
provisioner: sonar-data  #Deployment中spec.template.spec.containers.env.name.PROVISIONER_NAME 保持一致
parameters:
  archiveOnDelete: "true"  ## 删除pv的时候，pv的内容是否要备份

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: sonar-nfs-client-provisioner
  labels:
    app: sonar-nfs-client-provisioner
  namespace: sonar
spec:
  replicas: 1
  strategy:
    type: Recreate
  selector:
    matchLabels:
      app: sonar-nfs-client-provisioner
  template:
    metadata:
      labels:
        app: sonar-nfs-client-provisioner
    spec:
      serviceAccountName: sonar-nfs-client-provisioner
      containers:
        - name: sonar-nfs-client-provisioner
          image: registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/nfs-subdir-external-provisioner:v4.0.2
          volumeMounts:
            - name: nfs-client-root
              mountPath: /persistentvolumes
          env:
            - name: PROVISIONER_NAME
              value: sonar-data
            - name: NFS_SERVER
              value: 192.168.200.101 ## 指定自己nfs服务器地址
            - name: NFS_PATH
              value: /data/sonar  ## nfs服务器共享的目录
      volumes:
        - name: nfs-client-root
          nfs:
            server: 192.168.200.101
            path: /data/sonar
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: sonar-nfs-client-provisioner
  namespace: sonar
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: sonar-nfs-client-provisioner-runner
rules:
  - apiGroups: [""]
    resources: ["nodes"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["persistentvolumes"]
    verbs: ["get", "list", "watch", "create", "delete"]
  - apiGroups: [""]
    resources: ["persistentvolumeclaims"]
    verbs: ["get", "list", "watch", "update"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["storageclasses"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["events"]
    verbs: ["create", "update", "patch"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: sonar-run-nfs-client-provisioner
subjects:
  - kind: ServiceAccount
    name: sonar-nfs-client-provisioner
    namespace: sonar
roleRef:
  kind: ClusterRole
  name: sonar-nfs-client-provisioner-runner
  apiGroup: rbac.authorization.k8s.io
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: sonar-leader-locking-nfs-client-provisioner
  namespace: sonar
rules:
  - apiGroups: [""]
    resources: ["endpoints"]
    verbs: ["get", "list", "watch", "create", "update", "patch"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: sonar-leader-locking-nfs-client-provisioner
  namespace: sonar
subjects:
  - kind: ServiceAccount
    name: sonar-nfs-client-provisioner
    namespace:  sonar
roleRef:
  kind: Role
  name: sonar-leader-locking-nfs-client-provisioner
  apiGroup: rbac.authorization.k8s.io

2.2.2 PostgreSQL

pgsql.yaml

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: postgres-data
  namespace: sonar
spec:
  accessModes:
    - ReadWriteMany
  storageClassName: "sonar-storage"
  resources:
    requests:
      storage: 1Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: postgres-sonar
  namespace: sonar
spec:
  replicas: 1
  selector:
    matchLabels:
      app: postgres-sonar
  template:
    metadata:
      labels:
        app: postgres-sonar
    spec:
      containers:
      - name: postgres-sonar
        image: postgres:14
        ports:
        - containerPort: 5432
        env:
        - name: POSTGRES_DB
          value: "sonarDB"
        - name: POSTGRES_USER
          value: "sonarUser"
        - name: POSTGRES_PASSWORD
          value: "123456"
        volumeMounts:
          - name: data
            mountPath: /var/lib/postgresql/data
      volumes:
        - name: data
          persistentVolumeClaim:
            claimName: postgres-data
---
apiVersion: v1
kind: Service
metadata:
  name: postgres
  namespace: sonar
  labels:
    app: postgres-sonar
spec:
  ports:
  - name: postgres
    port: 5432
    targetPort: 5432
    protocol: TCP
  selector:
    app: postgres-sonar

2.2.3 SonarQube

sonar.yaml

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: sonarqube-data
  namespace: sonar
spec:
  accessModes:
    - ReadWriteMany
  storageClassName: "sonar-storage"
  resources:
    requests:
      storage: 1Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: sonarqube
  namespace: sonar
  labels:
    app: sonarqube
spec:
  replicas: 1
  selector:
    matchLabels:
      app: sonarqube
  template:
    metadata:
      labels:
        app: sonarqube
    spec:
      initContainers:
      - name: init-sysctl
        image: busybox:latest
        command: ["sysctl", "-w", "vm.max_map_count=262144"]
        securityContext:
          privileged: true
      containers:
      - name: sonarqube
        image: sonarqube:lts
        ports:
        - containerPort: 9000
        env:
        - name: SONAR_JDBC_USERNAME
          value: "sonarUser"
        - name: SONAR_JDBC_PASSWORD
          value: "123456"
        - name: SONAR_JDBC_URL
          value: "jdbc:postgresql://postgres:5432/sonarDB"
        livenessProbe:
          httpGet:
            path: /sessions/new
            port: 9000
          initialDelaySeconds: 60
          periodSeconds: 30
        readinessProbe:
          httpGet:
            path: /sessions/new
            port: 9000
          initialDelaySeconds: 60
          periodSeconds: 30
          failureThreshold: 6
        volumeMounts:
        - mountPath: /opt/sonarqube/conf
          name: data
        - mountPath: /opt/sonarqube/data
          name: data
        - mountPath: /opt/sonarqube/extensions
          name: data
      volumes:
      - name: data
        persistentVolumeClaim:
          claimName: sonarqube-data
---
apiVersion: v1
kind: Service
metadata:
  name: sonarqube
  namespace: sonar
  labels:
    app: sonarqube
spec:
  type: NodePort
  ports:
  - name: sonarqube
    port: 9000
    targetPort: 9000
    nodePort: 31124
    protocol: TCP
  selector:
    app: sonarqube
